Aiphone NIM Internal Calling and Communication System

Security and Intercom - Communication Devices

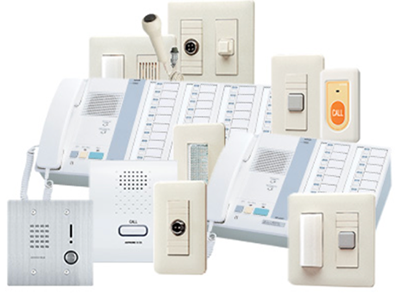

Intercom Communication System for Prisons and Institutions - NIM

Aiphone NIM Internal Calling and Communication System

Aiphone NIM is a hardwired intercom family providing two-way voice communication between a central master station and sub stations. The stations and calling workflow used in institutional applications are evaluated based on project operational requirements.

Request a Quote from NOVEL ↗

From need to solution

Connect the right communication points

Aiphone NIM Internal Calling and Communication System: selection starts with the measurement or system output your team needs for its decision.

01

Customer need

Visitor, staff or assistance calls need to reach the right person through a system suited to the building and use case.

02

Product output

The audio, video and call-routing functions supported by the selected system connect the required communication points.

03

Decision supported

Define doors, stations, wiring, call flows and required integrations together; capacity and protocol support differ by model.

Key Features

Handset VOX or push-to-talk communication.

All-call and paging functions from the master station.

Group calling with up to 5 selected stations.

Master station capacity and compatible sub units are selected according to the project.

Model Codes and Installation Choices

Select the function and installation type together. A master station, entrance panel, extension and adaptor perform different roles; the code identifies the component to be matched to your project.

NIM-20B / NIM-40BCentral Calling Stations

Centralise call selection and audio communication with NIM sub-stations. Select station count and wiring for the project capacity.

NIM-60B / NIM-80BHigher-Capacity Configurations

Evaluated where more calling points are required. Confirm special-order availability, regional supply and compatible sub-stations at quotation.

Why Aiphone?

Secure Communication and Privacy

Correct call routing and managed access permissions depend on suitable system configuration. For IP models, apply network segmentation, user permissions and supported security features to the project.

Durability and Clear Audio

Aiphone develops its products through testing and quality control. Evaluate outdoor suitability, impact ratings and audio settings for the selected model when planning a durable installation.

Quality Management

Aiphone highlights its 1981 and 2018 Deming Prize achievements and ISO 9001 quality management as part of its corporate quality approach. Check model-specific protection ratings and documentation separately.

System Selection and Application

NIM provides two-way communication between a master station and service points such as toll booths and schools. Suitable configurations support all-call paging and group calls to selected stations; station numbers and handset or hands-free components are chosen for the application.

Manufacturer System Information ↗

Application and Project Engineering

The manufacturer defines the NIM family as a nurse call system. Its use in institutional or secure facility projects requires separate engineering evaluation; no claims of universal suitability or certification are made for specialised applications such as correctional facilities.

System Components

Technical Specifications

Show Model and Wiring Details
Master station optionsNIM-20B / NIM-40B
Special capacityNIM-60B / NIM-80B; special order and supply confirmation
ContactTwo-way audio between master and sub stations
Project evaluationStation durability, call scenario, and field wiring are verified separately

Frequently Asked Questions

What information is needed to select Aiphone NIM Internal Calling and Communication System?

Describe the measurement or communication task, operating environment, required range or capacity and recording needs. NOVEL can help review the model and configuration information on this page.

Where can I find accessories and technical documents?

Review the specifications, documents and any accessories sections on this page. Include model, quantity and intended use in your quotation request, and confirm compatibility before ordering.

NOVEL Technical Support

For model selection, supply, and project planning Contact NOVEL. Regional product options and functions may vary by unit.
