Aiphone TC-M Internal Telephone-Type Intercom System
Security and Intercom - Communication Devices
Aiphone TC-M Internal Telephone-Type Intercom System

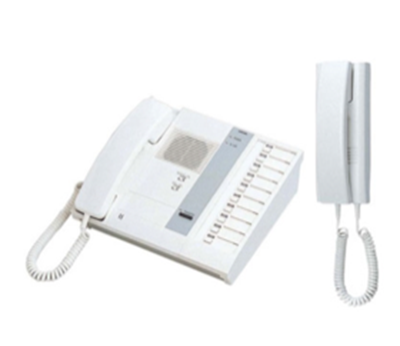

Aiphone TC-M is a telephone-type intercom system providing internal communication between a central master station and handset sub stations. Audible and LED call indication on the master station makes it easy to see which location is calling.
Request a Quote from NOVEL ↗Key Features
Single or dual master station installation options.
10-call TC-10M and 20-call TC-20M master stations.
Capacity expansion based on the project with 20- or 40-call add-on selectors.
Connecting calls between two TB-SE sub stations via the master station.
System Selection and Application
Suited for handset-based communication from designated points within buildings, restaurants, and commercial facilities to a master station. Audio and LED signalling at the master station ensure incoming calls are noticed; single or dual master stations, expansion add-on selectors, and door station adaptors are specified according to installation requirements.
Technical Specifications
Show Model and Wiring Details
| Master station | TC-10M / TC-20M |
|---|---|
| Sub station | TB-SE handset sub unit |
| Expansion | TC-20G / TC-40G / TC-40GS; depending on configuration |
| Door connection | Up to 10 compatible IE/IF door stations with TB-AD10 adaptor |
Application and Project Engineering
Can be used across buildings, restaurants, and fixed internal communication points in commercial premises. Cable cross-section, run length, number of selectors, and dual-master layout are determined according to the manufacturer's wiring diagram.
Technical Resources and NOVEL Support
Aiphone official product and technical information ↗
For model selection, supply, and project planning Contact NOVEL. Regional product options and functions may vary by unit. Aiphone Turkey product and application information ↗
NOVEL technical support
