EGC-100

Gas Detectors and Industrial Measurement Instruments

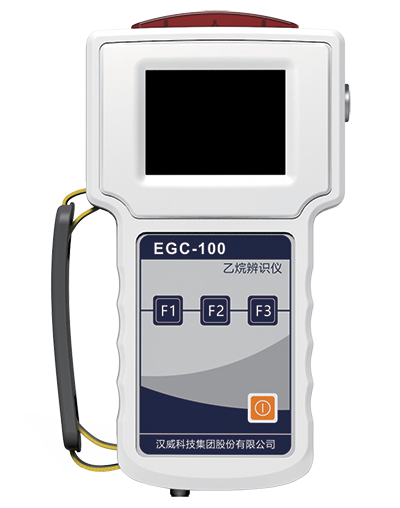

EGC-100

Ethane Gas Analyser in Natural Gas, custom-designed for Gas Distribution Companies and Industry

The EGC-100 Ethane Detector distinguishes between biogas (marsh gas) and natural gas using gas chromatographic (GC) separation principle and sensor technology. Thus, it helps prevent unnecessary excavation works in natural gas leak detection operations, saving time and resources. Ethane gas is present in natural gas and absent in biogas (marsh gas). Therefore, ethane gas detection is vital in natural gas leak survey operations. The most effective method for this procedure is to detect the ethane gas within the gas mass. The ECG-100 is an ideal instrument developed for this purpose.

Request a Quote from NOVEL ↗



Product Specifications
  • It is portable and handheld, easy to carry.

  • With its Bluetooth feature, it can operate directly with a printer without requiring a computer.

  • It is simple to use; all detection and analysis procedures are carried out with a single button and results are displayed on screen.

  • Thanks to its full-scale methane detection feature, it is suitable for use in sensitive applications such as gas leak surveys and natural gas pipe replacement operations.

  • It features a colour, easy-to-read LCD screen.

  • It has an integrated suction pump, enabling easy sampling in challenging field conditions.

  • It has an IP65 water and dust ingress protection rating for operation in harsh field conditions.

  • With its heavy-duty battery, it eliminates battery issues during field operations.

  • Technical Specifications

    Show Technical Details
    Detected Gas Methane (CH4), Ethane (C2H6), Propane (C3H8)
    Methane Gas Measurement Range 0-100% VOL
    Methane Gas Resolution Values Between 0-10,000ppm ±1ppm Between 5-100% VOL ±3%VOL
    Methane Gas Response Time T90 < 10seconds
    Ethane Gas Response Time T90 < 3minutes
    Ethane Gas Resolution Values 10ppm
    Operating Temperature and Humidity Temperature between -30°C and +50°C, relative humidity between 0 and 90%
    Battery Life More than 8 hours
    Protection Class IP65
    Dimensions 245 x 135 x 50 mm
    Weight 933 g
    Technical Table 2
    Detected Gas Methane, Propane, Argon, Carbon Dioxide, etc. (Specify target gas)
    Sensor Type Hot-Wire Semiconductor Sensor
    Measurement Method Internal sample draw
    Detected Gas Range 0-100% volume
    Alarm Values 50.0% volume
    Safety Classification Exib II BT3, ATEX (Suitable for operation in explosive risk environments)
    Operating Temperature 0 – 50 ℃
    Power Supply 4 x AA Alkaline batteries or rechargeable NiCd battery pack
    Battery Life 30 Hours
    Dimensions and Weight 82mm x 162mm x 36mm , 450g (Including battery)
    Standard Accessories Soft case, 4 x AA Alkaline batteries, gas sampling hose (1m), Probe filter / moisture trap
    Optional Accessories 2-30m gas sampling hose, gas dilution probe, PC data transfer software and USB cable
    Technical Table 3
    Detected Gas Flammable/Combustible gases (Specify target gas)
    Sensor Type Catalytic Combustion Sensor
    Measurement Method Internal sample draw
    Detected Gas Range 0-500/5,000ppm or 0-1,000/10,000ppm
    Alarm Values 250 or 500 ppm
    Safety Classification Exib II BT3, ATEX (Suitable for operation in explosive risk environments)
    Operating Temperature 0 – 40 ℃
    Power Supply 4 x AA Alkaline batteries or rechargeable NiCd battery pack
    Battery Life 20 Hours
    Dimensions and Weight 82mm x 162mm x 36mm , 450g (Including battery)
    Standard Accessories Soft case, 4 x AA Alkaline batteries, gas sampling hose (1m), Probe filter / moisture trap
    Optional Accessories 2-30m gas sampling hose, gas dilution probe, PC data transfer software and USB cable
    Technical Table 4
    Detected Gas Flammable/Combustible gases (Specify target gas) O2
    Sensor Type For flammable/combustible gases:Catalytic Combustion Sensor O2 for:Galvanic Sensor
    Measurement Method Internal sample draw
    Detected Gas Range For flammable/combustible gases:0-100% LEL O2 for:0-25 %vol
    Alarm Values For flammable/combustible gases:20% LEL O2 for:18 %vol
    Safety Classification Exib II BT3, ATEX (Suitable for operation in explosive risk environments)
    Operating Temperature 0 – 40 ℃
    Power Supply 4 x AA Alkaline batteries or rechargeable NiCd battery pack
    Battery Life 20 Hours
    Dimensions and Weight 82mm x 162mm x 36mm , 450g (Including battery)
    Standard Accessories Soft case, 4 x AA Alkaline batteries, gas sampling hose (1m), Probe filter / moisture trap
    Optional Accessories 2-30m gas sampling hose, gas dilution probe, PC data transfer software and USB cable
    Technical Table 5
    Detected Gas Oxygen
    Sensor Type Galvanic Sensor
    Measurement Method Internal sample draw
    Detected Gas Range 0-25% volume
    Alarm Values 18.0% volume
    Safety Classification Exib II BT3, ATEX (Suitable for operation in explosive risk environments)
    Operating Temperature 0 – 40 ℃
    Power Supply 4 x AA Alkaline batteries or rechargeable NiCd battery pack
    Battery Life 100 Hours
    Dimensions and Weight 82mm x 162mm x 36mm , 450g (Including battery)
    Standard Accessories Soft case, 4 x AA Alkaline batteries, gas sampling hose (1m), Probe filter / moisture trap
    Optional Accessories 2-30m gas sampling hose, gas dilution probe, PC data transfer software and USB cable

    Notice: The technical information, product specifications and images on this page are based on manufacturer publications. The manufacturer may change specifications without notice. For current specifications or assistance in selecting a suitable product for your application, please contact NOVEL at info@novel.com.tr .
