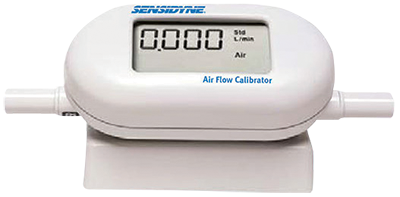

Gilian Go-CAL

Occupational Safety and Environmental Measuring Instruments

Gilian Go-CAL

High-Accuracy Portable Air Flow Calibration Instrument

Request a Quote from NOVEL ↗



Product Specifications
  • The World's Best Portable Flow Calibrator With its compact dimensions, ultra-lightweight construction, and precise calibration range, Go-CAL is an ideal flow calibrator for fieldwork. The standout advantage of the calibrator over other instruments is its capability to perform air flow verification between 10cc/min and 20000cc/min without requiring any module swap. Real-time flow rate can be continuously monitored on the LED display. Furthermore, the calibrator's greatest advantage is providing the option to operate either on optional AA alkaline batteries or via an adapter. With these attributes, the calibrator rightfully earns its place as the world's best portable flow calibrator.

  • Technical Specifications

    Show Technical Details
    Flow Range 10-20000 cc/min (0.01-20.0 Litres/minute)
    Sensitivity ± 2% or ± 5cc/min (whichever is greater)
    Warm-up Time 1 minute
    Sampling Mode Ability to continuously monitor air flow reading on the screen
    Power Status Operation with 6 AA Alkaline Batteries or 7.5VDC ±1.5V Power Adapter
    Dimensions and Weight 127 x 50 x 32 mm; ~1kg (including batteries)

    Notice: The technical information, product specifications and images on this page are based on manufacturer publications. The manufacturer may change specifications without notice. For current specifications or assistance in selecting a suitable product for your application, please contact NOVEL at info@novel.com.tr .
