Portable Oxygen Analysers

Oxygen Detectors and Oxygen Analysers

GPR-1200 Portable Purity Oxygen Analyser (ppm)

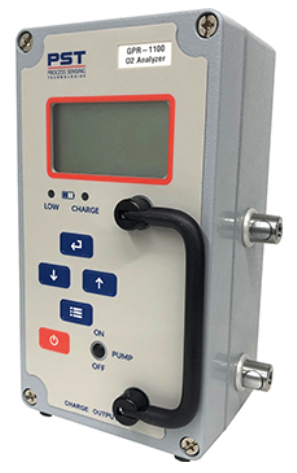

GPR-1100 Portable Purity Oxygen Analyser (ppm)

GPR-1000, GPR-1100, GPR-1200 and GPR-2000
Portable Oxygen Analysers
(with different measurement range options between ppm and %VOL)

Request a Quote from NOVEL ↗

Product Specifications

Convenient, Portable and Robust Construction
Analytical Industries GPR series oxygen analysers are designed to operate in demanding field conditions thanks to their rugged enclosure. They are easy to carry thanks to their portable design and optional carrying case. Settings are straightforward with the user menu and legible LCD display.
Advanced Technology Analytical Industries Sensors
Analytical Industries Inc. oxygen sensors are engineered to mitigate potential vulnerabilities in galvanic sensor designs. GPR and XLT sensor options are available.
Long Battery Life and Operation in Potentially Explosive Atmospheres with ATEX/IECEx Approval
Provides long operational life with a rechargeable battery. Operating time may vary in models with an internal pump option. In addition, versions equipped with ATEX certification and suitable for fully hazardous areas are available. This allows the instruments to operate fully across all industrial environments.
Application Areas
Suitable for diverse applications including oxygen and nitrogen generators, oxygen tanks, leak detection applications, glass manufacturing, metal refining plants, and argon/nitrogen welding processes.

Product Documents

GPR-1000
GPR-1100
GPR-1200
GPR-2000

Product Videos

YouTube video player — YouTube video player
Watch Video ↗

Technical Specifications

GPR-1000

Technical Specifications

Detected Oxygen Range	0-1000ppm, 0-1%, 0-25%
Sensitivity	5ppm
Display Resolution	1ppm
Dimensions and Weight	101 x 229 x 76mm, ~3.6kg
Optional Accessories	Internal sample pump, sampling accessories, carrying case.
Measurement Accuracy	< ±2%
Response Time	T90: < 10s
Sensor Life	~2 years (at 25°C temperature and 1atm pressure)
Calibration Interval	1 month
Display	7 x 3.5cm LCD Display
Certificates	UL: Class I, Division 1, Groups B, C, D ATEX: Ex ib IIB T4 (Suitable for potentially explosive atmospheres)
Operating Temperature	+5°C to +45°C
Battery Specifications and Life	Rechargeable VRLA Battery, 30 days
Protective Enclosure Type	Aluminium NEMA 4X

GPR-1100

Detected Oxygen Range	0-10ppm, 0-100ppm, 0-1000ppm, 0-1%, 0-25%
Sensitivity	0.05ppm
Display Resolution	0.01ppm
Dimensions and Weight	101 x 229 x 76mm, ~3.6kg
Optional Accessories	Internal sample pump, sampling accessories, carrying case.
Measurement Accuracy	< ±2%
Response Time	T90: < 10s
Sensor Life	~2 years (at 25°C temperature and 1atm pressure)
Calibration Interval	1 month
Display	7 x 3.5cm LCD Display
Certificates	UL: Class I, Division 1, Groups B, C, D ATEX: Ex ib IIB T4 (Suitable for potentially explosive atmospheres)
Operating Temperature	+5°C to +45°C
Battery Specifications and Life	Rechargeable VRLA Battery, 30 days
Protective Enclosure Type	Aluminium NEMA 4X

GPR-1200

Detected Oxygen Range	0-10ppm, 0-100ppm, 0-1000ppm, 0-1%, 0-25%
Sensitivity	0.05ppm
Display Resolution	0.01ppm
Dimensions and Weight	218 x 229 x 76mm, ~5.6kg
Optional Accessories	Sampling accessories, carrying case.
Measurement Accuracy	< ±2%
Response Time	T90: < 10s
Sensor Life	~2 years (at 25°C temperature and 1atm pressure)
Calibration Interval	1 month
Display	7 x 3.5cm LCD Display
Certificates	UL: Class I, Division 1, Groups B, C, D ATEX: Ex ib IIB T4 (Suitable for potentially explosive atmospheres)
Operating Temperature	+5°C to +45°C
Battery Specifications and Life	Rechargeable VRLA Battery, 30 days
Protective Enclosure Type	Aluminium NEMA 4X

GPR-2000

Detected Oxygen Range	0-1%, 0-5%, 0-10%, 0-25%
Sensitivity	0,005%
Display Resolution	0,001%
Dimensions and Weight	101 x 229 x 76mm, ~3.6kg
Optional Accessories	Internal sample pump, sampling accessories, carrying case.
Measurement Accuracy	< ±2%
Response Time	T90: < 10s
Sensor Life	~2 years (at 25°C temperature and 1atm pressure)
Calibration Interval	1 month
Display	7 x 3.5cm LCD Display
Certificates	UL: Class I, Division 1, Groups B, C, D ATEX: Ex ib IIB T4 (Suitable for potentially explosive atmospheres)
Operating Temperature	+5°C to +45°C
Battery Specifications and Life	Rechargeable VRLA Battery, 30 days
Protective Enclosure Type	Aluminium NEMA 4X

Measurement and Standards Approach

In process gas analysis, as much as the measuring range, sample gas pressure, flow rate, background gas, moisture/condensation risk, sensor material, and calibration gas are also critical selection parameters. In hazardous area applications, certifications such as ATEX/IECEx must be verified according to the model variant; analogue/digital output and alarm requirements for process control must be evaluated separately.

Sectors

Oil, Gas and Petrochemicals Chemical and Pharmaceutical Industry Power and Infrastructure Iron & Steel, Metals and Mining Agriculture, Food and Beverage Electronics and Semiconductor Technologies Healthcare and Hospitals Universities and R&D

Alternative Products

You can examine product details and technical specifications by selecting an alternative suited to your requirements.

You can visit the original website

Brand and support in Turkey: Analytical Industries Turkey — NOVEL Ltd., Sole Authorised Distributor of Analytical Industries in Turkey. You can review the brand page for brand product groups, related products, and technical support information.
