Occupational Safety and Environmental Measuring Instruments
Professional Occupational Hygiene Air Sampling Platform with Standard, Plus, and Pro Models
High back-pressure capability, compact ergonomics, and smart field management. The Apex2 has been engineered to deliver reliable constant flow for personal dust, aerosol, and method-compliant air sampling applications.
All three Apex2 models share the same core sampling performance; selection is primarily based on data management, Bluetooth, and programming requirements.
TSI Casella Apex2 Personal Air Sampling Pump: selection starts with the measurement or system output your team needs for its decision.
01
Customer need
Sampling requires air to be drawn from the breathing zone or a selected location at the flow and duration specified by the method.
02
Product output
Air passed through the appropriate filter, cassette, cyclone or sorbent tube creates a sample for analysis; the pump alone does not measure contaminant concentration.
03
Decision supported
Relate the laboratory result to sampled air volume, selecting media and flow together and calibrating the assembled sampling train.
Key advantage of the Apex2 Plus: Combines the powerful pump performance of the Standard model with Bluetooth®, Airwave remote monitoring, data download, inlet pressure sensing, and a run duration timer. The Pro model adds advanced functions such as a programmable timer and TWA.
Apex2 Images and Field Advantages
Apex2 Plus – Compact personal samplingSlim, ergonomic body, colour display, and protective rubber boot; designed for personal air sampling on the worker throughout the shift.

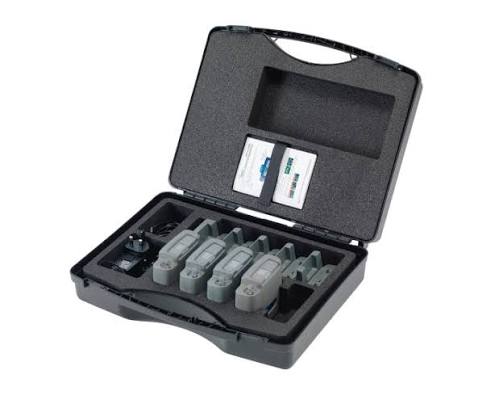

5-Way Kit – Field-Ready Carrying CaseIdeal kit configuration for carrying five pumps and key accessories neatly together; streamlines team management during multi-worker sampling.

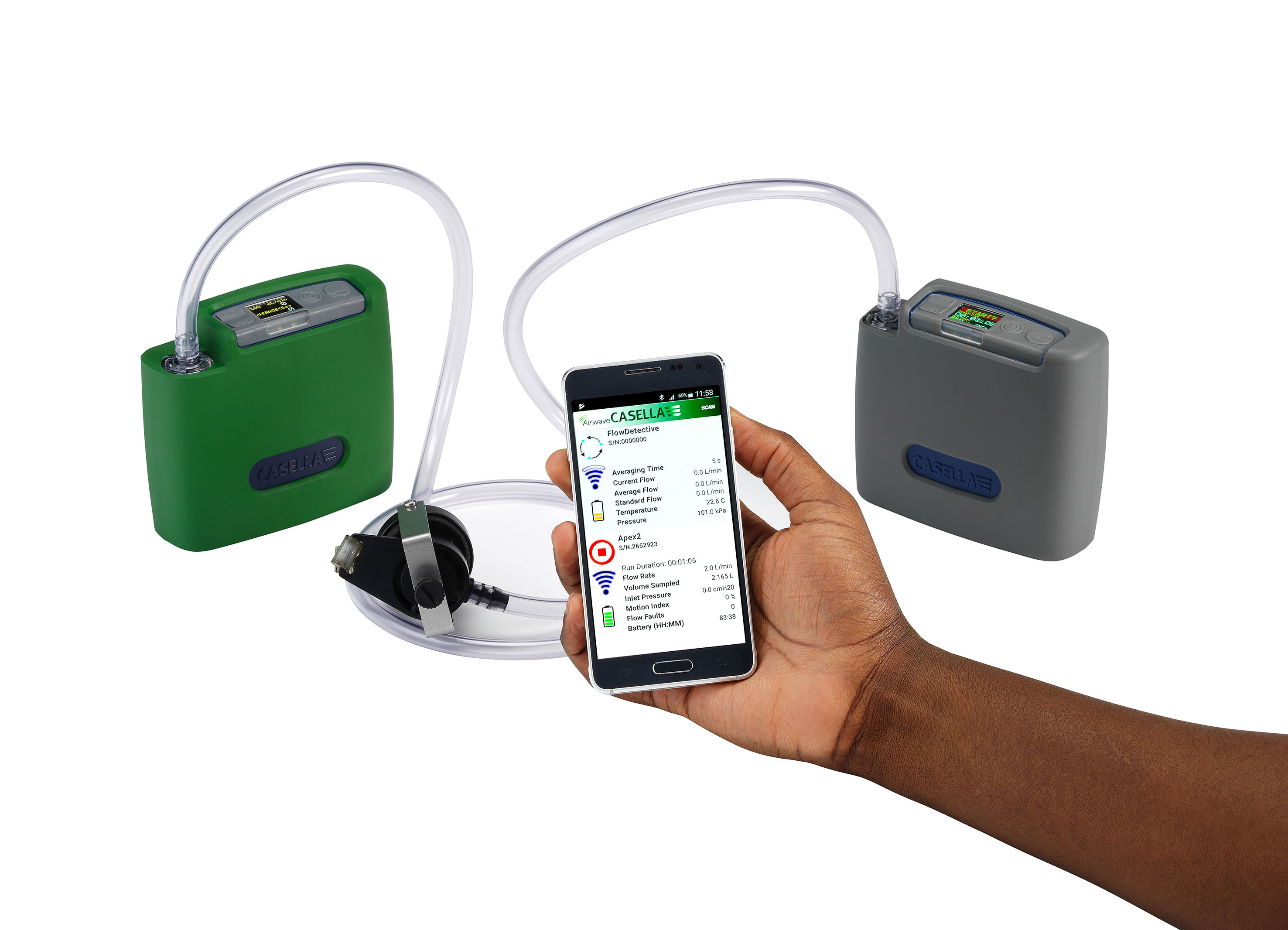

Easy Field Workflow with BluetoothRemotely view pump status via Airwave on Plus and Pro models; start/stop and monitor without disturbing the worker. Verify flow rate with a suitable flow calibrator.

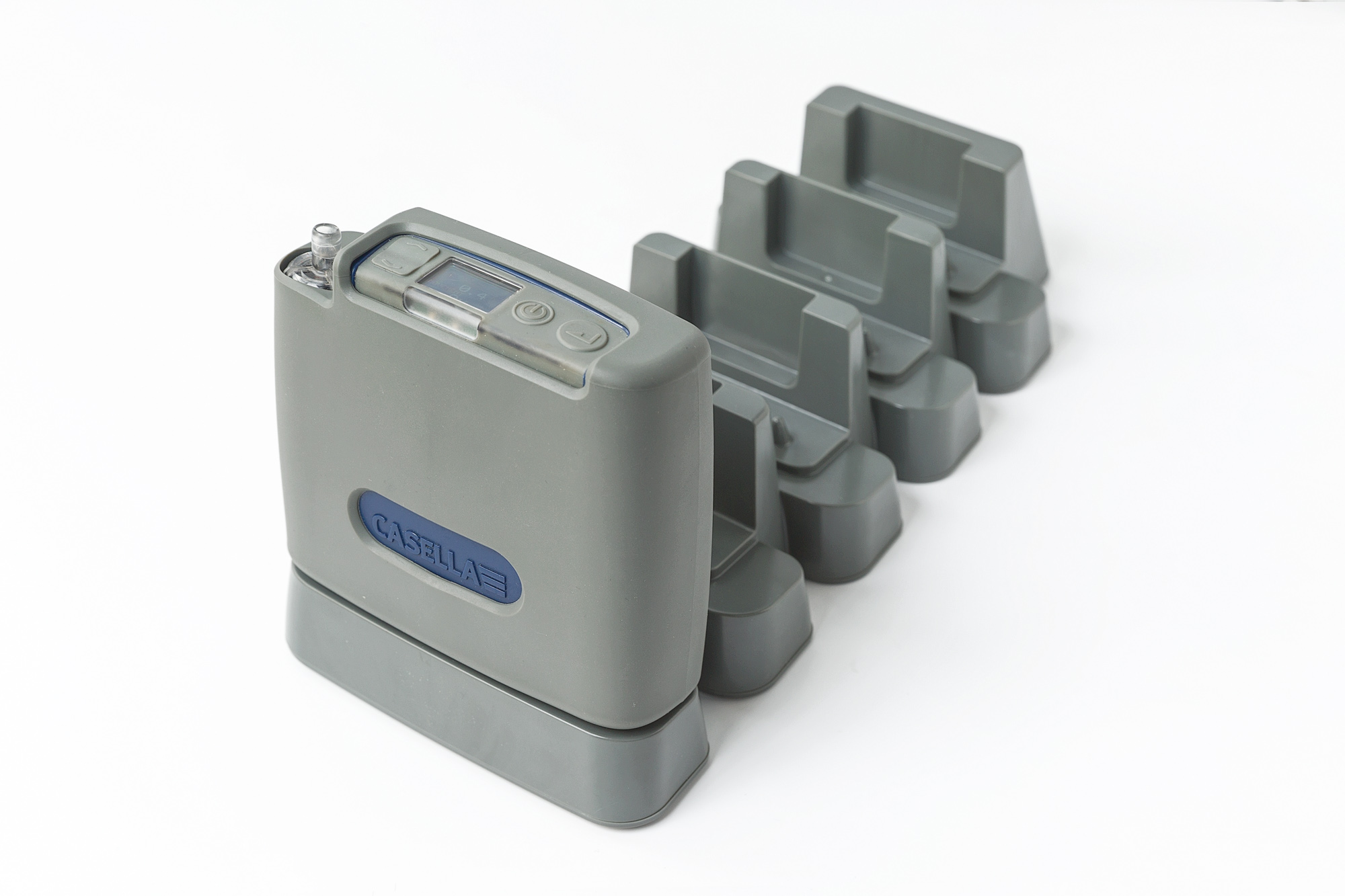

5-Way Dock – Single-Point Charging and DataCharge five pumps neatly in a single dock. The USB-connected docking infrastructure streamlines the data download workflow on compatible models.

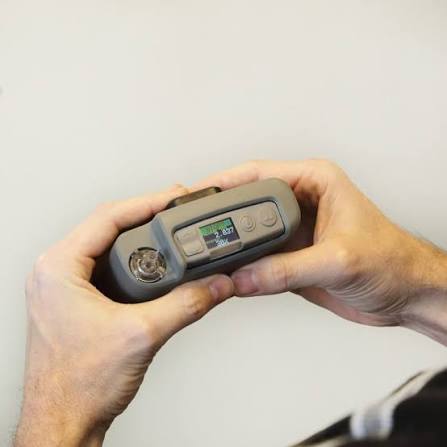

Easy 4-Button OperationQuickly check flow rate, run time, volume, battery status, and operating mode in the field via the colour-coded OLED display and straightforward menu structure.

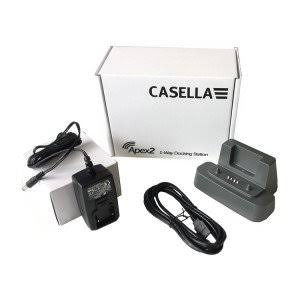

Single Dock – Individual UseCompact charging dock for single-pump operations; makes it easy to set the pump to charge systematically after a shift.
Smart Field Management with Calibration and Airwave
For accurate personal air sampling, the pump must be calibrated at the target flow rate with the sampling media in line. The Bluetooth® / Airwave connectivity of the Apex2 Plus and Pro models makes it easy to monitor and control the pump without disturbing the worker. Airwave does not replace an external primary flow calibrator; flow rate verification must be performed with an appropriate calibrator before and after sampling.
Differences Between Standard, Plus, and Pro Models
Selection guidance: Standard for basic routine sampling; for professional field teams requiring Bluetooth, remote monitoring, and data transfer, Plus; for studies requiring advanced timers, TWA, and detailed time-history data, Pro.
Which Sampling Applications Can Be Performed with an Apex2?
Respirable Dust and SilicaRespirable dust and crystalline silica sampling according to standard methods using a suitable cyclone and filter.
Inhalable / Total DustPersonal particulate sampling with an IOM or method-compliant sampling head and filter cassettes.
Welding Fume and MetalSampling of metal particulates, welding fume, and process aerosols using suitable filter media and flow rates.
Gases and VapoursMethod-dependent active gas and organic vapour sampling using a low-flow adaptor and appropriate sorbent tubes/media.
Fibres / AsbestosPump platform suitable for fibre sampling applications using method-compliant filter cassettes and specified flow rates.
Bag SamplingThe pump's bag outlet feature supports gas bag sampling applications when used with suitable connections and procedures.
Technical Specifications
Technical Table 1
Specification
Standard
Plus
Pro
Intrinsically Safe
✓
✓
✓
Motion sensor
✓
✓
✓
Bag outlet
✓
✓
✓
User / keypad lock
✓
✓
✓
Bluetooth® / Airwave
—
✓
✓
PC data download
—
✓
✓
Inlet pressure sensing
—
✓
✓
Run duration timer
—
✓
✓
Fully programmable timer
—
—
✓
TWA mode
—
—
✓
Time-history data graphing
—
—
✓
Technical Table 2
Flow Rate Range
0.8–5.0 L/min (current TSI product data); 5–500 mL/min at low flow with suitable adaptor
Flow Control
Flow stability better than ±5% at calibrated point
Pulsation
<10% @ 2 L/min
Display
Colour OLED, 4-button user interface
Dimensions / Weight
112 × 37 × 102 mm / approx. 490 g (including protective boot)
Ingress Protection
IP65
Battery
Li-ion; run time depends on flow rate and back pressure. Current TSI page specifies over 35 hours of operation at 2 L/min with typical filter.
Charging
Single or 5-way docking station; typical full charge <6 hours
Standard
ISO 13137:2022 (current TSI Apex2 Plus data)
Product Specifications
0.8–5 L/min Medium FlowOperating range of 0.8–5 L/min for personal sampling applications according to current TSI data; low-flow applications with suitable adaptor.
High Back PressureStrong back-pressure capability designed for working with demanding filter media, particularly in occupational hygiene applications at approximately 2 L/min.
ISO 13137:2022TSI specifies ISO 13137:2022 compliance in the current Apex2 Plus product information.
Intrinsically SafeIntrinsically safe model construction for use in flammable atmospheres; certification scope must be verified according to site classification.
Bluetooth® + AirwaveEnables remote monitoring and control of multiple pumps on Plus and Pro models without disturbing the worker.
IP65 and Ergonomic BodyIP65 protection suitable for dusty/harsh site conditions, protective boot, robust clip, and easily decontaminated casing.
Sampling Heads, Media and Flow Calibration
Apex2 operates directly at 800–5000 mL/min; 5–500 mL/min requires the low-flow adapter. IOM at 2 L/min and GK2.69 at 1.6 / 4.2 L/min can be considered within this range. Set up the complete sampling train, verify flow at the sampling-head inlet before and after use, and record the result. A field flow check does not replace periodic laboratory calibration.
GK2.69
GK2.69 Thoracic / Respirable Cyclone
Thoracic fraction at 1.6 L/min; respirable fraction at 4.2 L/min. Select the fraction by flow and confirm that the pump maintains it under filter load.
Choose MCE, PVC, PTFE or another filter for the analyte and laboratory method. Match cassette diameter, sections, pore size and flow in the sampling plan.
For gas/vapour sampling select sorbent, tube dimensions, duration and low flow by method. Tube holder, breaker and connection tubing complete the train.
Liquid collection methods require an upright bottle holder and a trap protecting the pump. The analytical method determines flow, absorbing liquid and sample volume.
Normal range 500–5000 mL/min. Plus adds 20–500 mL/min and closed-loop adjustment with Apex2. Below 20 mL/min select a different suitable calibrator/cell.
Dry cells: low 5–450 mL/min, standard 50–5000 mL/min, high 1–30 L/min. Select the cell covering the sampling flow; check before/after sampling with head, filter and tubing assembled.
Occupational Hygiene and OHS LaboratoriesPersonal exposure sampling and field measurement teams.
Mining, Quarrying, and SilicaMethod-compliant sampling in respirable dust and crystalline silica studies.
Metals, Welding, and FoundriesWelding fume and metal particulate sampling applications.
Chemicals and PharmaceuticalsUse with appropriate media in particulate, gas, and vapour exposure assessments.
Oil and PetrochemicalsHazardous area applications with appropriate intrinsic safety certification.
Universities and R&DFlexible sampling platform for occupational exposure and aerosol research.
Frequently Asked Questions About TSI Casella Apex2
What flow range does the Casella Apex2 operate across?
According to current manufacturer information, the Apex2 operates in the 0.8–5 L/min medium-flow range. In low-flow applications, a range of 5–500 mL/min is supported with a suitable adaptor.
What is the difference between Apex2 Standard, Plus, and Pro?
All three models share the same fundamental pump performance, intrinsic safety, and motion sensor. The Plus adds Bluetooth, Airwave, PC data download, inlet pressure sensing, and a run duration timer. The Pro adds a programmable timer, TWA, and time-history data graphing.
Is the Apex2 suitable for intrinsically safe / ATEX use?
Intrinsically safe models of the Apex2 series are certified for use in hazardous areas. Current certification markings and zone classification of the target site must be verified prior to purchase.
Does the Apex2 comply with the ISO 13137 standard?
TSI specifies ISO 13137:2022 compliance in the current Apex2 Plus product information. The flow rate, media, and calibration requirements of the sampling method must also be observed.
Can calibration be performed via Bluetooth with the Apex2?
The Plus and Pro models offer Bluetooth and Airwave support. Pumps can be monitored and controlled remotely via Airwave. Flow calibration is performed before and after sampling using a suitable external flow calibrator; Bluetooth connectivity facilitates the field workflow and pump control.
What is the advantage of the 5-way Apex2 kit?
It simplifies managing five pumps within a single transport and charging infrastructure. In the 5-way kit, the manufacturer supplies a 5-way docking station, power supply, USB cable, and essential accessories alongside the pumps; this is practical for multi-member field teams and laboratories.
Does NOVEL provide calibration and technical support for Casella Apex2?
NOVEL provides technical support in Turkey for product selection, application consultancy, training, maintenance, accessories, and calibration processes for TSI / Casella air sampling solutions.
