KITAGAWA · SHORT-TERM GAS MEASUREMENT

Kitagawa AP-20 Short-Term Gas Detector Tube System

Find your target gas and tube code. Plan field measurements with the right system.

Search Kitagawa TubesFind a tube by chemical name, CAS number or tube code.

MEASUREMENT SYSTEM

Direct-reading gas and vapour measurement in the field.

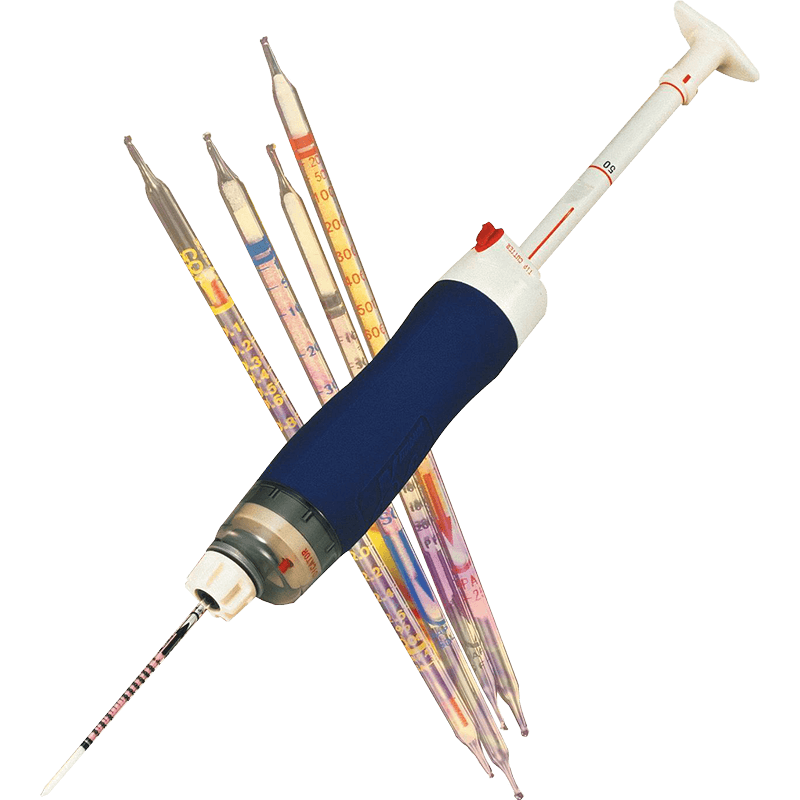

The Kitagawa system combines a chemical-specific detector tube with the AP-20 manual pump. The stain formed in the tube provides a concentration reading. For occupational hygiene, maintenance and process checks, select the tube by target substance, expected concentration and site conditions.

Request a Quote from NOVEL

Reusable pump

Use the AP-20 with the appropriate single-use tubes. Check tube expiry dates and storage conditions.

No electrical supply

Manual aspiration supports portable use. A sampling completion indicator shows when the draw is complete.

Tube-specific selection

Verify range, interferences and corrections in the tube instructions. Do not mix pump and tube brands.

TECHNICAL OVERVIEW

Technical Specifications

System, method and configuration

Measurement method: Chemical-specific colorimetric detector tube
Pump: AP-20B standard blue; AP-20R, AP-20G and AP-20Y alternatives
Sample volume: 100 mL full stroke; follow the procedure specified for the tube
Operation: Manual; no battery or charging required
Pump features: Sampling completion indicator and ceramic tip cutter

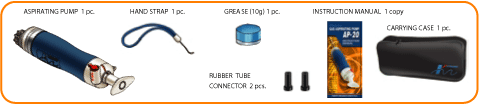

Supplied accessories: Hand strap, two rubber connectors, carrying case, 10 g grease and manual
Selection inputs: Chemical / CAS, expected concentration, temperature, humidity and interferences

Tube-specific instructions determine the valid range, sampling procedure and corrections. Confirm the method for your application with NOVEL.

COMPLETE YOUR SYSTEM

Accessories and Consumables

SH-5N / SH-10N

5 and 10 m extension hoses

For reaching remote sampling points. Check tube compatibility and sampling conditions.

Request this accessory ↗

SR-200R

Extension sampling pole

For positioning a tube at difficult-to-reach horizontal or vertical locations. AP-20 pump is separate.

Request this accessory ↗

AP-20 maintenance items

Rubber connectors and grease

For pump leak-tightness and moving-part maintenance. Provide the pump details when requesting parts.

Request this accessory ↗

Request availability, pack quantity and compatibility by tube or accessory code. No live stock information is displayed.

NOVEL · VIDEO

Kitagawa Gas Measurement System

Play video

MEASUREMENT AND SELECTION

Frequently Asked Questions

Which Kitagawa tube should I select for my chemical?

Search the tube catalogue by chemical name or product code. Review the CAS number, measuring range and other gases present. Include the tube code and your application in the quotation request.

Can a detector tube be reused?

Do not reuse a spent detector tube. Use a suitable new tube and follow the manufacturer’s pump check procedure.

Is a short-term tube the same as a TWA dosimeter?

No. A short-term concentration check and time-weighted average exposure are different measurement objectives. TWA requires a suitable method and dedicated tube.
