Gilian GilAir Plus Personal Air Sampling Pump

Occupational Safety and Environmental Measuring Instruments

Gilian GilAir Plus personal air sampling pump

Gilian QuadMode™ Technology Combining Low and High Flow Sampling in a Single Pump

Extremely broad application range in dust, aerosol, fibre, gas, VOC, and vapour samplings. GilAir Plus is designed to enable occupational hygiene professionals to use a single pump platform across diverse sampling methods.

Request a Quote from NOVEL ↗





The primary reason it is positioned as one of the world's most capable sampling pumps: Sensidyne describes the product as “The Industry’s Most Versatile Pump”. QuadMode™ combines constant flow and constant pressure control across low and high flow ranges in the same unit, without an external low-flow adapter. From NOVEL's perspective, the strongest differentiator of the GilAir Plus is its capability to cover widely diverse occupational hygiene methods with a single pump.

Product Specifications

  • The Only Air Sampling Pump Incorporating All Desired Features
    Gilian GilAir Plus is a new-generation sampling pump developed taking into account user demands and field research. It can be used with suitable media and accessories in dust, aerosol, gas, and VOC/vapour sampling; it also supports gas bag sampling applications.

  • Low and High Flow Applications in a Single Instrument
    Thanks to QuadMode™ technology, it covers an operating range of 20–5,100 cc/min in constant flow and 1–5,100 cc/min in constant pressure without an external low-flow adapter. It reduces the requirement for separate pumps for low and medium/high flow samplings.

  • Superior Features, Compact Design
    Despite its wide operating range, its portable form factor is well suited to personal occupational hygiene sampling. Flow rate, sampling runtime, volume, battery status, and operating parameters can be viewed on the large LCD screen.

  • Motion Detection, Bluetooth, and Data Management
    Motion detection and Bluetooth connectivity on compatible configurations help inspect the pump without disturbing the worker. Datalog/STP models and the Gilian Connect infrastructure support the management of sampling records.

  • Temperature and Pressure Correction
    The STP model measures ambient temperature and barometric pressure, allowing it to correct sampling volume and flow to selected standard conditions; it supports flow accuracy against variations arising from altitude.

  • Charging, Programming, and SmartCal™
    Optional docking stations facilitate charging, data transfer, reporting, and automated calibration routines on compatible models. Advanced functions such as programmed start/stop, constant flow or constant pressure modes, and fault management are provided.

    • Bluetooth Capability and Smart Field Operation

    Gilian GilAir Plus Bluetooth and Gilian Connect features

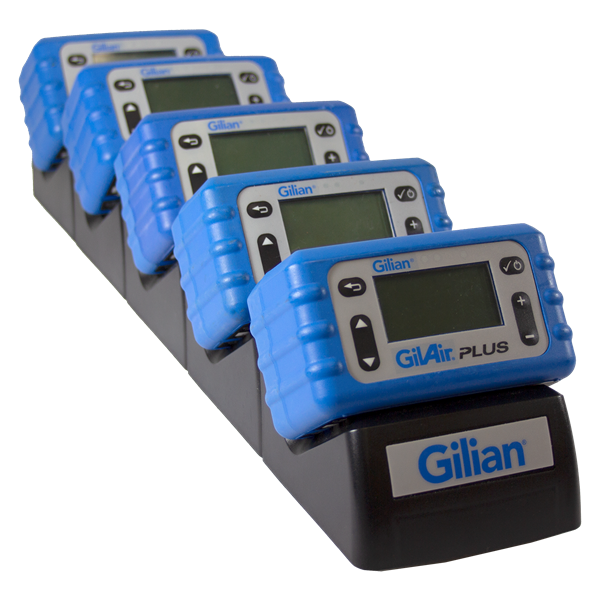

    Gilian GilAir Plus 5-pump charging dock station

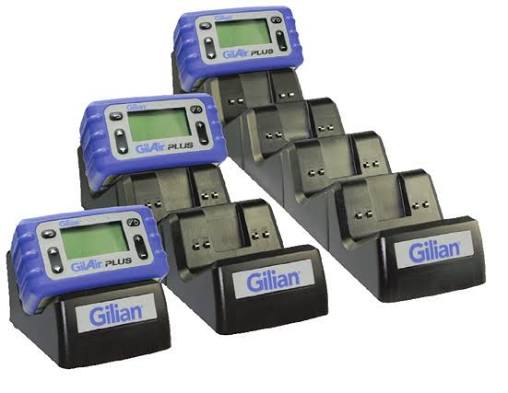

    Gilian GilAir Plus multi-dock stations

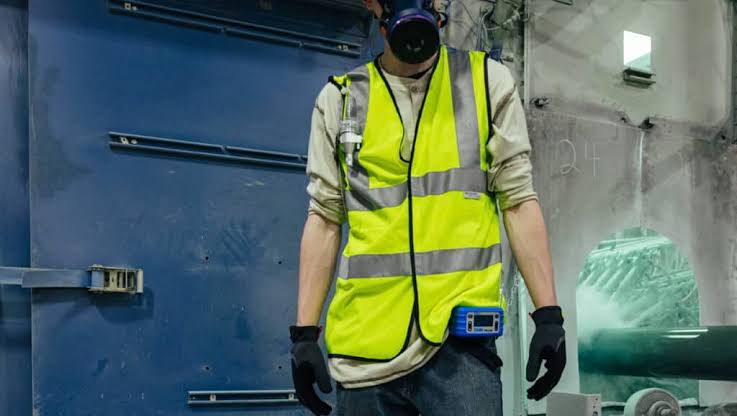

    Gilian GilAir Plus personal air sampling pump worn on a worker

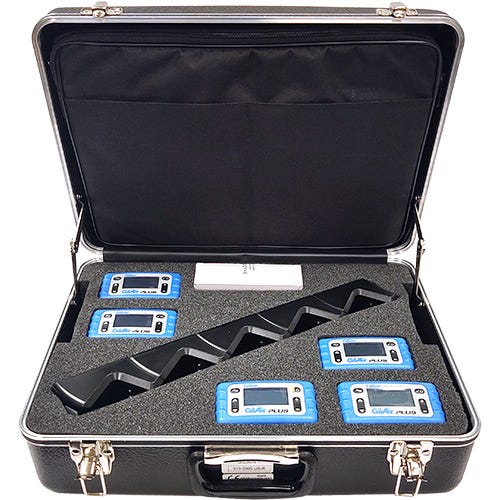

    Gilian GilAir Plus 5-unit set carrying case

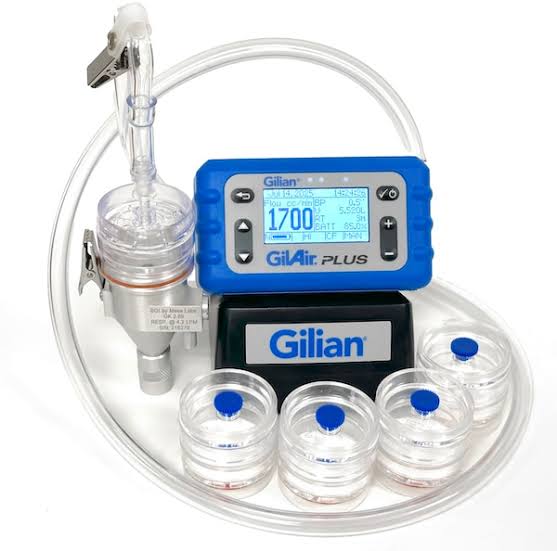

    Gilian GilAir Plus silica and respirable dust sampling kit
    New technologies:
    • Worker/device motion sensor
    • Bluetooth connectivity and remote inspection
    • Gilian Connect mobile application support
    • QuadMode™ air sampling technology
    • Selectable automatic fault recovery
    • STP temperature and pressure correction (STP model)
    • Real-time data acquisition and reporting facilities (model dependent)

    Why Gilian GilAir Plus?

    Single Pump, Exceptionally Broad Operating Range20–5,100 cc/min in constant flow; 1–5,100 cc/min in constant pressure. Reduces the need for a separate low-flow pump or an external low-flow adapter.
    QuadMode™Flexible operation tailored to the sampling method via constant flow or constant pressure control in low and high flow ranges.
    ISO 13137 ApproachThe manufacturer indicates ISO 13137:2013 compliance in current product information; this is one of the benchmark references for pump performance in personal air sampling studies.
    Dust + Gas + VOCSupports widely varied sampling trains using filter cassettes, cyclones, IOM samplers, sorbent tubes, and method-compliant media.
    High Backpressure CapabilityFlow control under high backpressure for challenging sampling media is highlighted in manufacturer specifications.
    Programming and Fault ManagementFunctions such as programmed sampling, flow fault alerts, and automatic fault recovery facilitate field operation.

    Which Sampling Applications Can Be Performed with a Single Pump?

    Respirable Dust and SilicaMethod-compliant respirable dust and crystalline silica samplings using a cyclone + filter.
    Inhalable / Total DustPersonal inhalable or total particulate samplings using IOM and suitable head/filter systems.
    Gas and Vapour / VOCLow-flow gas and organic vapour samplings using activated charcoal, silica gel, and other sorbent tubes.
    Welding Fume and MetalSampling of welding fumes, metal particulates, and process aerosols using suitable filter media.
    Fibre and AsbestosFibre/asbestos sampling studies using filter cassettes and flow rates compliant with the relevant method.
    Multiple Tube SamplingSampling applications across multiple sorbent tubes using an appropriate manifold/holder in constant pressure mode.

    GilAir Plus Basic, Datalog, and STP Models

    BasicCore GilAir Plus functions and QuadMode operating framework for routine professional sampling.
    DatalogFor applications requiring data logging, advanced programming, and data transfer/reporting via dock.
    STPAdds temperature and barometric pressure measurement, STP correction, and advanced environmental compensation in addition to Datalog features.

    Product Videos

    GilAir Plus product overview

    Gilian GilAir Plus product overview
    Gilian GilAir Plus product overview
    Watch Video ↗

    GilAir Plus operation and sampling

    Gilian GilAir Plus operation and sampling
    Gilian GilAir Plus operation and sampling
    Watch Video ↗

    GilAir Plus field application

    Gilian GilAir Plus field application
    Gilian GilAir Plus field application
    Watch Video ↗

    GilAir Plus features

    Gilian GilAir Plus features
    Gilian GilAir Plus features
    Watch Video ↗

    GilAir Plus training video

    Gilian GilAir Plus training video
    Gilian GilAir Plus training video
    Watch Video ↗

    Technical Specifications

    Technical Table
    Flow RangeConstant-flow operation at 20–5,100 cc/min; constant-pressure operation at 1–5,100 cc/min.
    Sensitivity± 5% or ± 3 cc/min (whichever is greater)
    Display IndicationsFlow rate, total sampling time and volume, flow fault, battery power indicator, programming mode
    Battery LifeMin. 8 hours; actual operating time depends on flow rate, backpressure, battery condition, and field conditions.
    Weight580 g
    Compliance / ApprovalsFor use in a hazardous area, refer to the current manufacturer certificate and its scope for the selected model. Contact NOVEL before purchase to confirm the model, flow range and options for your application.
    QuadMode™Constant flow or constant pressure control at low and high flows; pump architecture requiring no external low-flow adapter.
    BackpressureBackpressure capability up to 40 inH₂O in low and high flow modes is specified in current manufacturer product details; flow-dependent runtimes and specifications should be checked separately.

    Sampling and Standards Approach

    With personal air sampling pumps such as the GilAir Plus, the pump alone does not determine the analytical result. Flow rate, sampling head, filter or sorbent tube, sampling duration, and analytical method must be selected together in accordance with the applicable national or international standard. ISO 13137:2013 is one of the principal references for the performance requirements of personal air sampling pumps. Verifying the flow rate with an appropriate flow calibrator before and after sampling is recommended.

    Sectors

    Occupational Health, Occupational Hygiene and Environment
    Iron and Steel, Metal, Welding, and Foundries
    Mining, Quarrying, Concrete, and Silica
    Chemicals, Pharmaceuticals, and Laboratories
    Oil, Gas and Petrochemicals
    Universities, R&D, and Accredited Laboratories

    Complementary and Related Products

    A correct sampling system is established by selecting the pump, method-compliant sampling media/head, and flow calibrator in conjunction.

    Gilian Go-CAL Pro low, standard, and high flow air calibrator modelsGilian Go-CAL ProPortable flow calibrator for pre- and post-sampling pump flow verification.VIEW →Gilian Gilibrator-3Gilian Gilibrator 3Primary flow calibration and professional laboratory/field verification.VIEW →Filter Cassettes, Transport Cassettes for All Dust and Fibre SamplingAir Sampling AccessoriesCyclones, IOM samplers, filter cassettes, sorbent tubes, and method-compliant sampling media.VIEW →

    Frequently Asked Questions About Gilian GilAir Plus

    What flow range does the Gilian GilAir Plus operate in?
    According to current manufacturer data, it can operate in the range of 20–5,100 cc/min in constant flow mode and 1–5,100 cc/min in constant pressure mode.
    Is an external low-flow adapter required for low flow sampling?
    No. QuadMode technology delivers constant flow or constant pressure control across low and high flows within the same pump; the manufacturer indicates that no external low-flow adapter is required for these operating ranges.
    Can the GilAir Plus be used for dust, gas, and VOC sampling?
    Yes. It can be used in sampling applications for dusts, aerosols, gases, VOCs, and vapours using filter cassettes, cyclones, IOM samplers, sorbent tubes, and other occupational hygiene accessories suited to the sampling media and method.
    Is the GilAir Plus compliant with ISO 13137?
    Sensidyne specifies compliance with ISO 13137:2013 for the GilAir Plus in current product literature. The flow rate, sampling media, and calibration requirements of the specific method to be applied must also be observed.
    What is the primary difference between the Basic, Datalog, and STP models?
    The Basic model focuses on core sampling functions. The Datalog model provides data logging and advanced programming. The STP model adds temperature and barometric pressure measurement along with correction to standard conditions.
    Does NOVEL provide calibration and technical support for the GilAir Plus?
    NOVEL provides technical support in Turkey for Gilian/Sensidyne air sampling solutions across product selection, application consultancy, training, maintenance, and calibration processes.
    You can visit the original website
    You may contact the NOVEL technical team for product selection, application support, accessories, calibration, and after-sales technical support regarding Gilian / Sensidyne air sampling pumps in Turkey.

    Notice: The technical information on this page has been compiled by evaluating the original NOVEL webpage alongside the manufacturer's current GilAir Plus documentation. The phrase “the world’s most capable” represents NOVEL's commercial evaluation based on the product's QuadMode architecture and wide operating range; the manufacturer positions the GilAir Plus as “The Industry’s Most Versatile Pump”. The manufacturer reserves the right to amend technical specifications without prior notice; current configurations and certifications should be confirmed prior to procurement. info@novel.com.tr
