Senko MGT-SGT Series

Occupational Safety and Environmental Measuring Instruments

Senko MGT-SGT Series product image

Multi-Gas Detector, for Occupational Safety and Industrial Safety

Request a Quote from NOVEL ↗

From need to solution

Match field checks to the gas and measuring range

Senko MGT-SGT Series: selection starts with the measurement or system output your team needs for its decision.

01

Customer need

Maintenance and survey work require a measurement method and range suitable for the gas encountered.

02

Product output

Readings and alarm indications from the fitted sensors help assess conditions at the inspection point.

03

Decision supported

Plan screening, closer investigation and repeat measurements, with pre-use checks and site procedures as part of the measurement process.



Meet the MGT Multi-Gas Detector, designed to safeguard your industrial safety at the highest level. The MGT continuously monitors the four critical gases responsible for the most workplace accidents (O2, CO, H2S, CH4) and detects potential hazards instantly. Dual-sensor technology provides extra sensitivity to carbon monoxide (CO) and hydrogen sulphide (H2S) gases. With its visual, vibrating, and audible alarm system, MGT protects your workers against lethal risks such as oxygen deficiency, toxic gas leaks, and gas explosions. Choose MGT to elevate your safety standards!
*O2=Oxygen --- For measurements arising from oxygen deficiency; it is among the most critical chemicals to measure in clip-on gas detectors.
*CO=Carbon Monoxide --- An increase in carbon monoxide generated by combustion poses a vital risk to workers; measurement is critical.
*H2S=Hydrogen Sulphide
*CH4=Methane (Can be calibrated for all explosive gases!)
Product Documents

Gas Detection and Standards Approach

Portable gas detection approach: Target gases, alarm purpose, diffusion or pumped sampling, sensor type, operating lifespan, confined space procedures, and hazardous area classification must be evaluated together. In flammable gas and explosive atmosphere applications, the EN/IEC 60079 series; and for toxic gas/oxygen performance, relevant EN 45544 and EN 50104 standards may be considered depending on the application. Definitive compliance and certification must be verified using the product model code and manufacturer documentation.

Product Specifications

  • RESISTANT AGAINST ALL ADVERSE FIELD CONDITIONS: The MGT Personal Multi-Gas Detector has a highly compact, lightweight, yet extremely rugged construction against adverse field conditions (highly resistant to water and dust with high IP67 ingress protection!) Furthermore, the instrument is certified for use in ATEX - IECEx explosion-risk areas.

  • RECHARGEABLE BATTERY PROVIDING DAYS OF OPERATION: In this way, it does not run out of charge while worn by the worker, eliminating field difficulties. The instrument is supplied with a charging kit in the box; single/multi-unit charging and bump-test stations are also available as options. Daily bump testing can also be carried out while docked. A single charge provides 60 days of battery life with the N-type infrared version, and over 25 hours of operating time with the P-type catalytic sensor version.

  • The instrument provides loud (>90dB), illuminated visual, and vibrating alarms that inform the worker of dangerous conditions during a gas leak. Alarm levels can be configured across multiple stages by the user as required.

  • EASY AND FAST CALIBRATION: The instrument can be verified via gas testing within seconds using a simple hose connection and the adaptor included in the box. If more efficient operation is required, the optional docking station provides both charging and daily bump testing.

  • DATA LOGGING: The instrument can store over 30 alarms in memory based on detection date. Data can be downloaded to a PC via an external IR kit for reporting

  • HIGH SALES VOLUME: Our high-safety instrument is one of the top-selling gas detector models in Europe, being both economical and high quality. With continuous device availability in both our stock and the manufacturer portfolio, it prevents disruptions during procurement, which is particularly critical for the marine industry.

  • Continuous operation for two years without the need for calibration or recharging!*

*Applies to the single-gas SGT model.

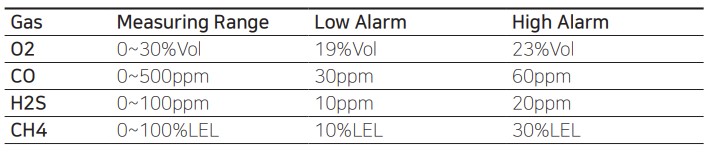

Gas Specifications

Sectors

Alternative Products

You can examine product details and technical specifications by selecting an alternative suited to your requirements.

Frequently Asked Questions

What information is needed to select Senko MGT-SGT Series?

Describe the measurement or communication task, operating environment, required range or capacity and recording needs. NOVEL can help review the model and configuration information on this page.

Where can I find accessories and technical documents?

Review the specifications, documents and any accessories sections on this page. Include model, quantity and intended use in your quotation request, and confirm compatibility before ordering.
